HazeFlight 6S1P battery

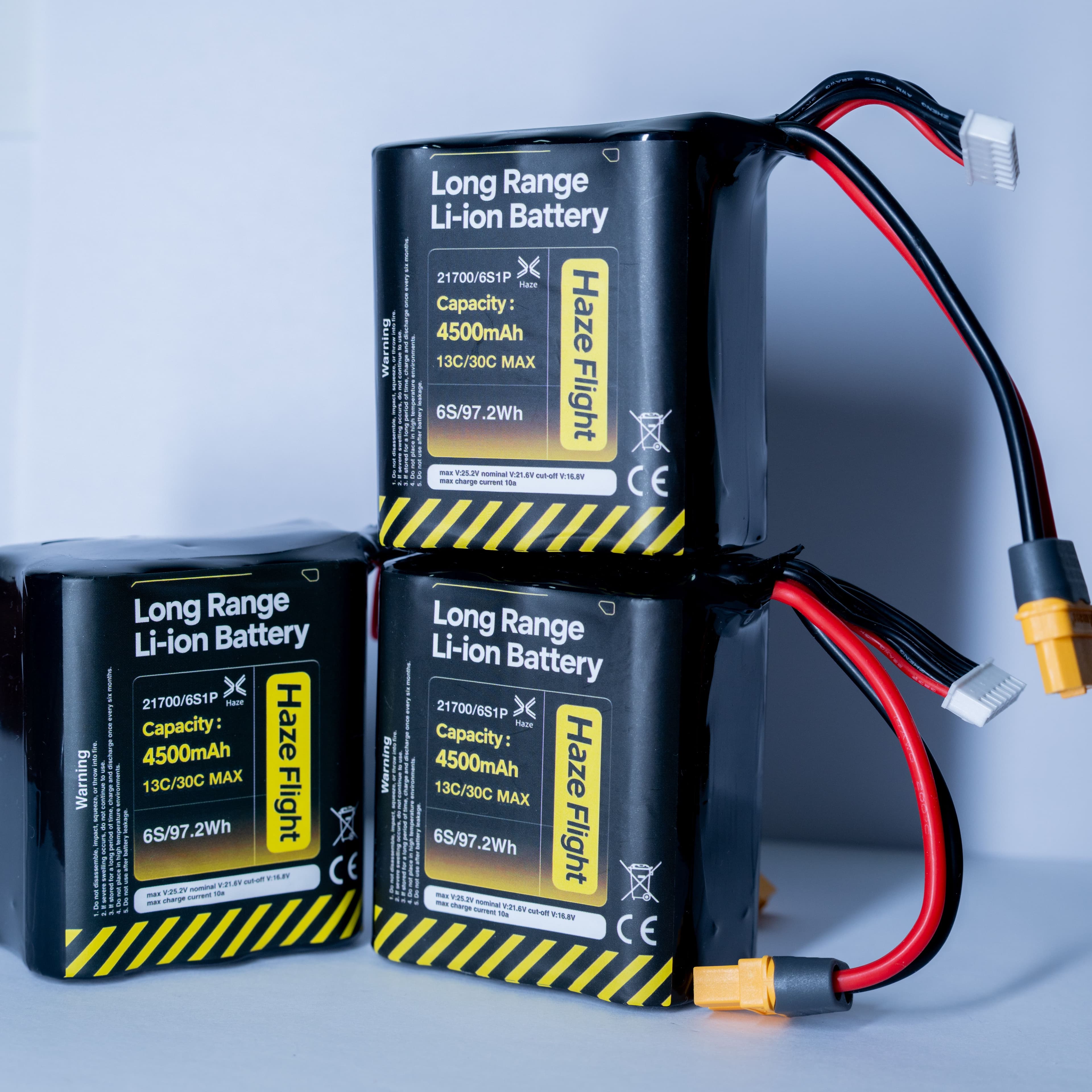

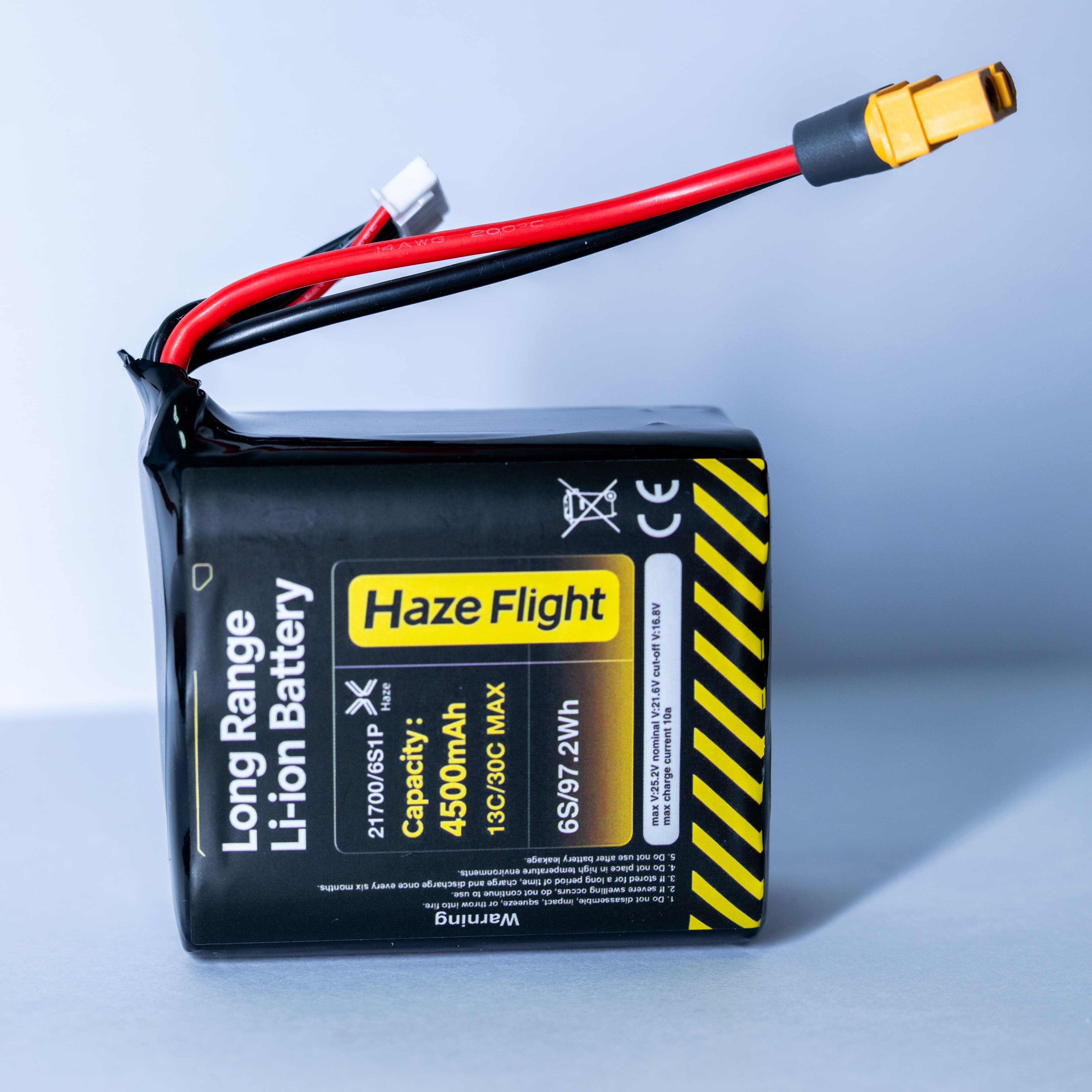

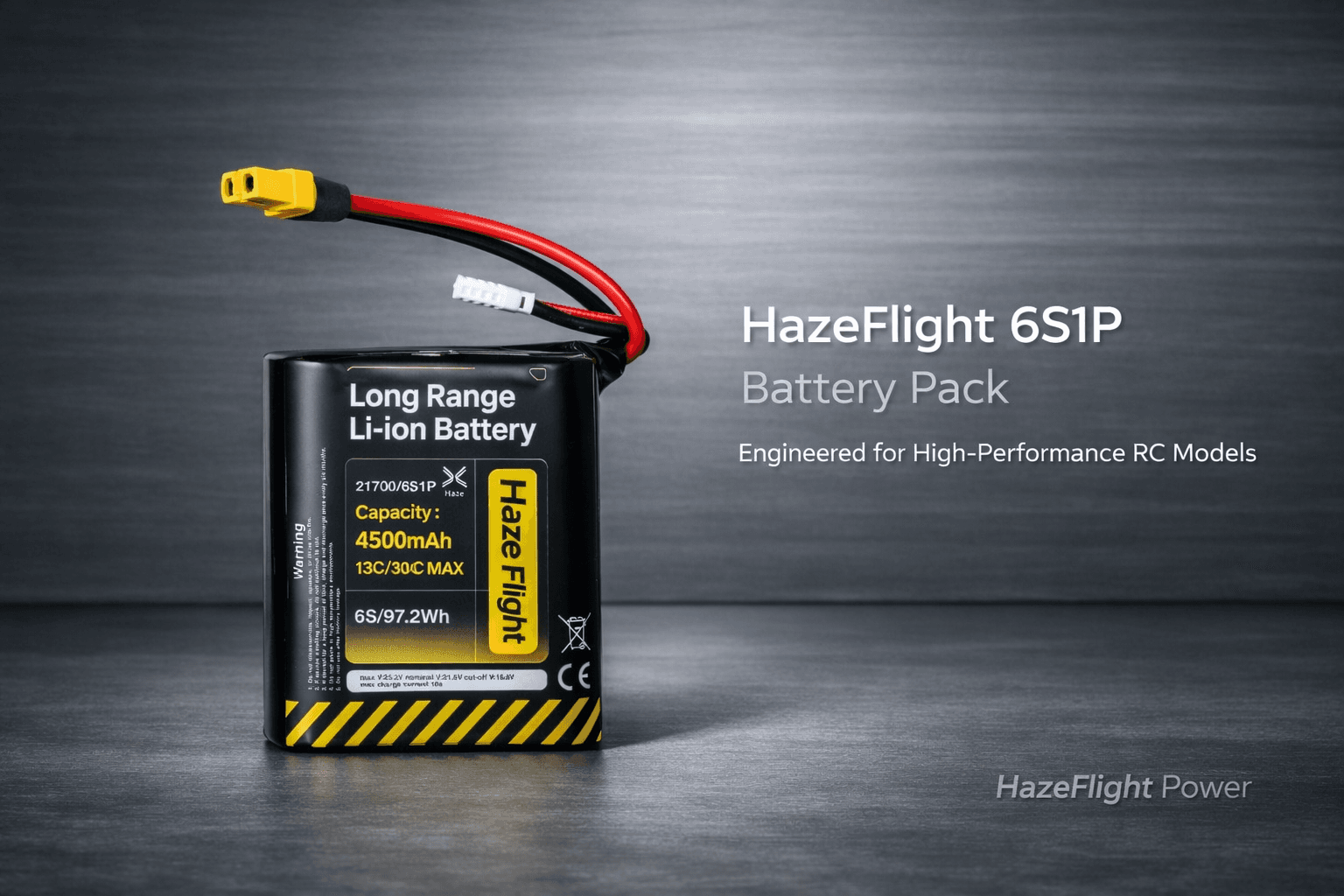

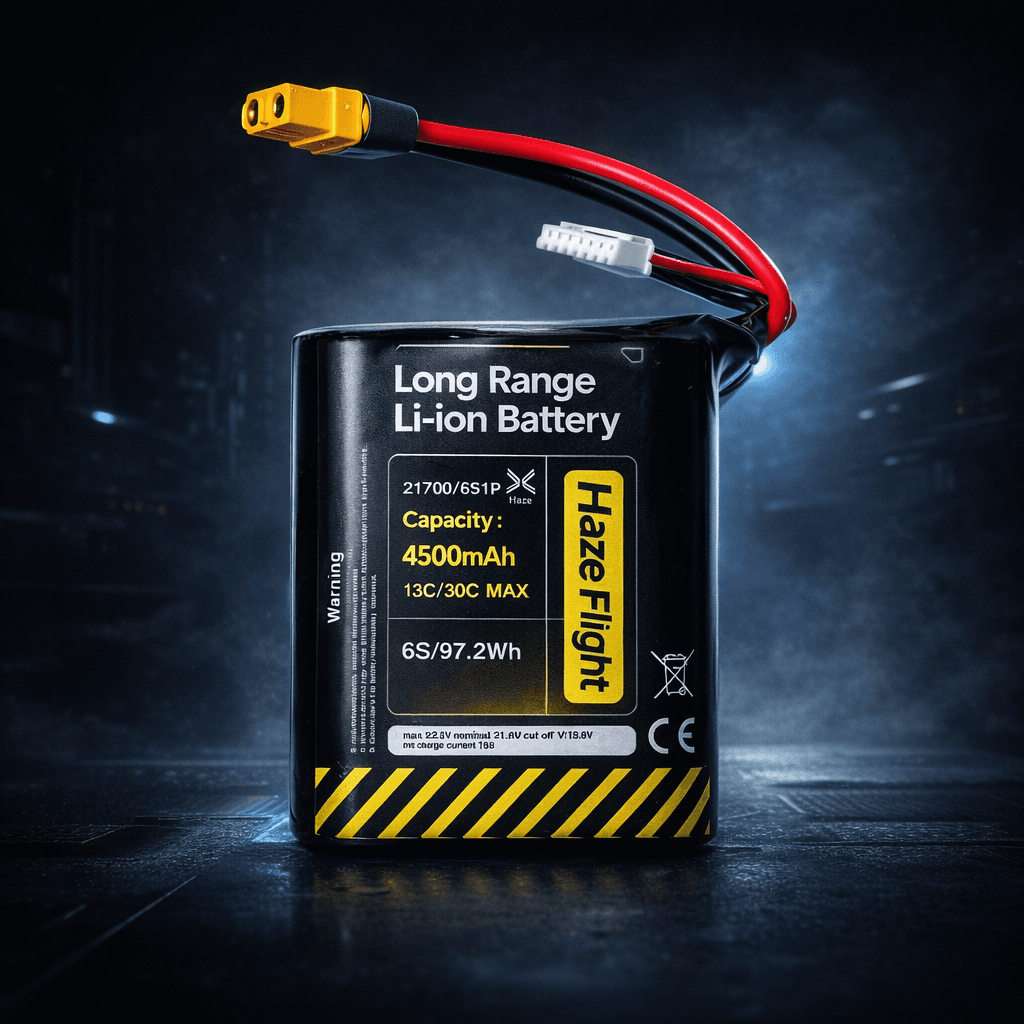

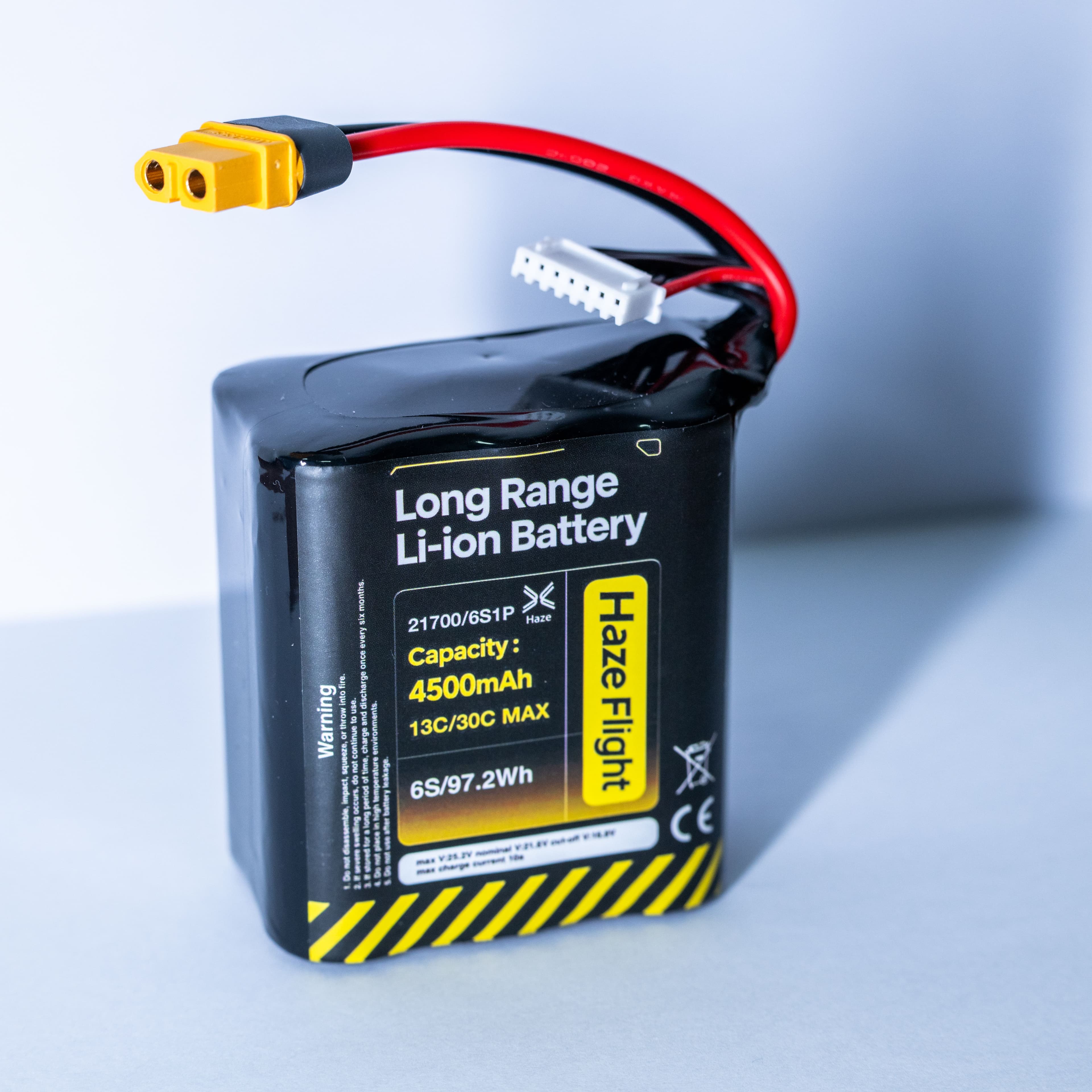

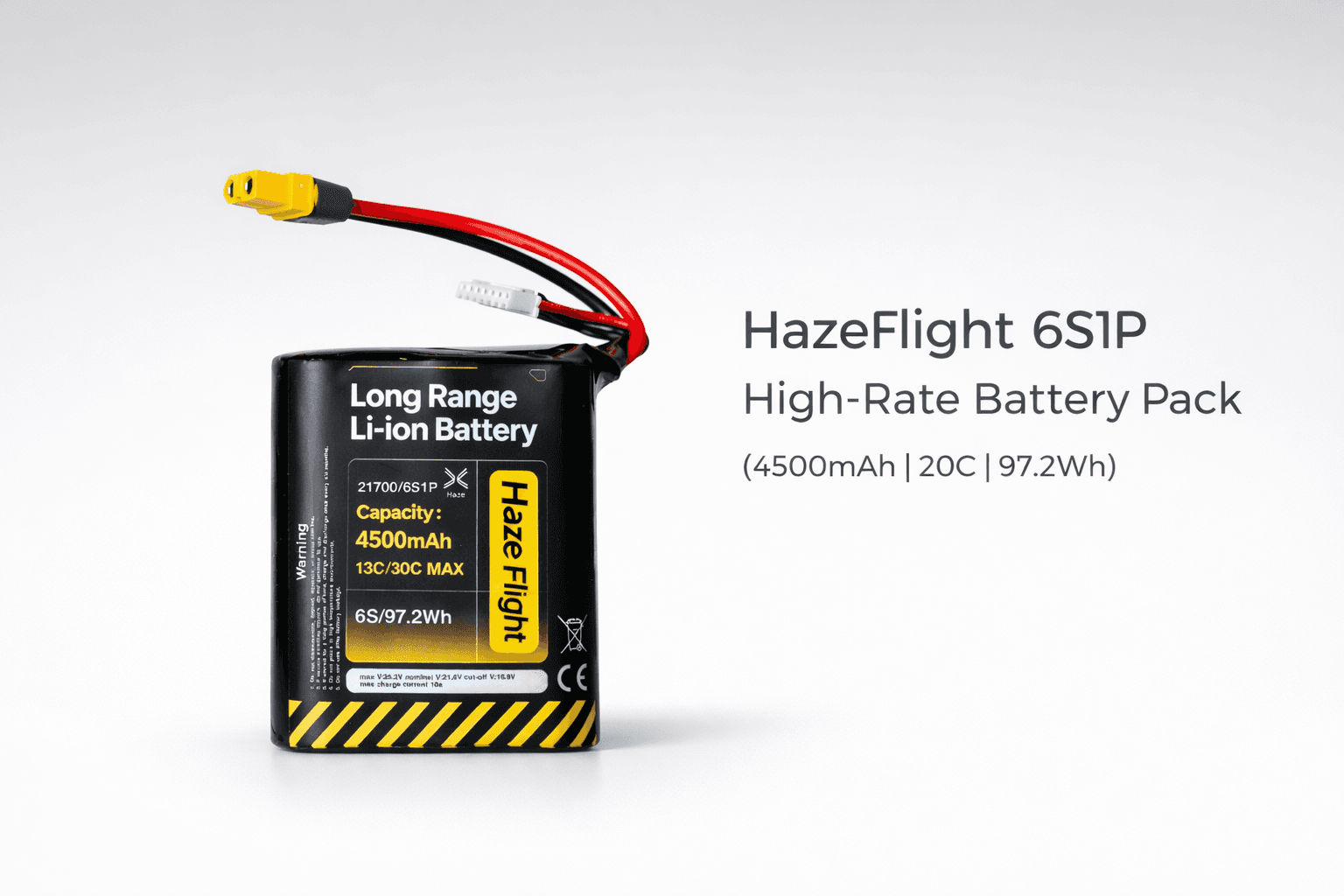

HazeFlight 6S1P High-Rate Lithium-Ion Battery Pack
– Engineered for High-Performance FPV Drones & Long-Range Models –
Product Overview
Designed by HazeFlight, specialists in drone development and RC power systems, this 6S1P 21700 battery pack utilizes brand-new BAK 45D high-rate cells. Optimized specifically for our FPV drone and fixed-wing aircraft models, it delivers a rated capacity of 4500mAh and a continuous 20C discharge rate. It perfectly balances explosive power and extended flight time, making it the ideal energy source for long-range cruising, racing, and endurance flights.
🚀 Key Features
· Optimized for HazeFlight Aircraft
Developed and validated by the HazeFlight design and testing team to ensure perfect integration and peak performance with our drones.
· Premium Cells & Precision Matching
Features INR2170-45D power cells, each with an internal resistance of ≤3.0mΩ. Rigorous sorting and matching ensure a cell-to-cell resistance variance of <0.2mΩ, guaranteeing consistent output and extended cycle life.

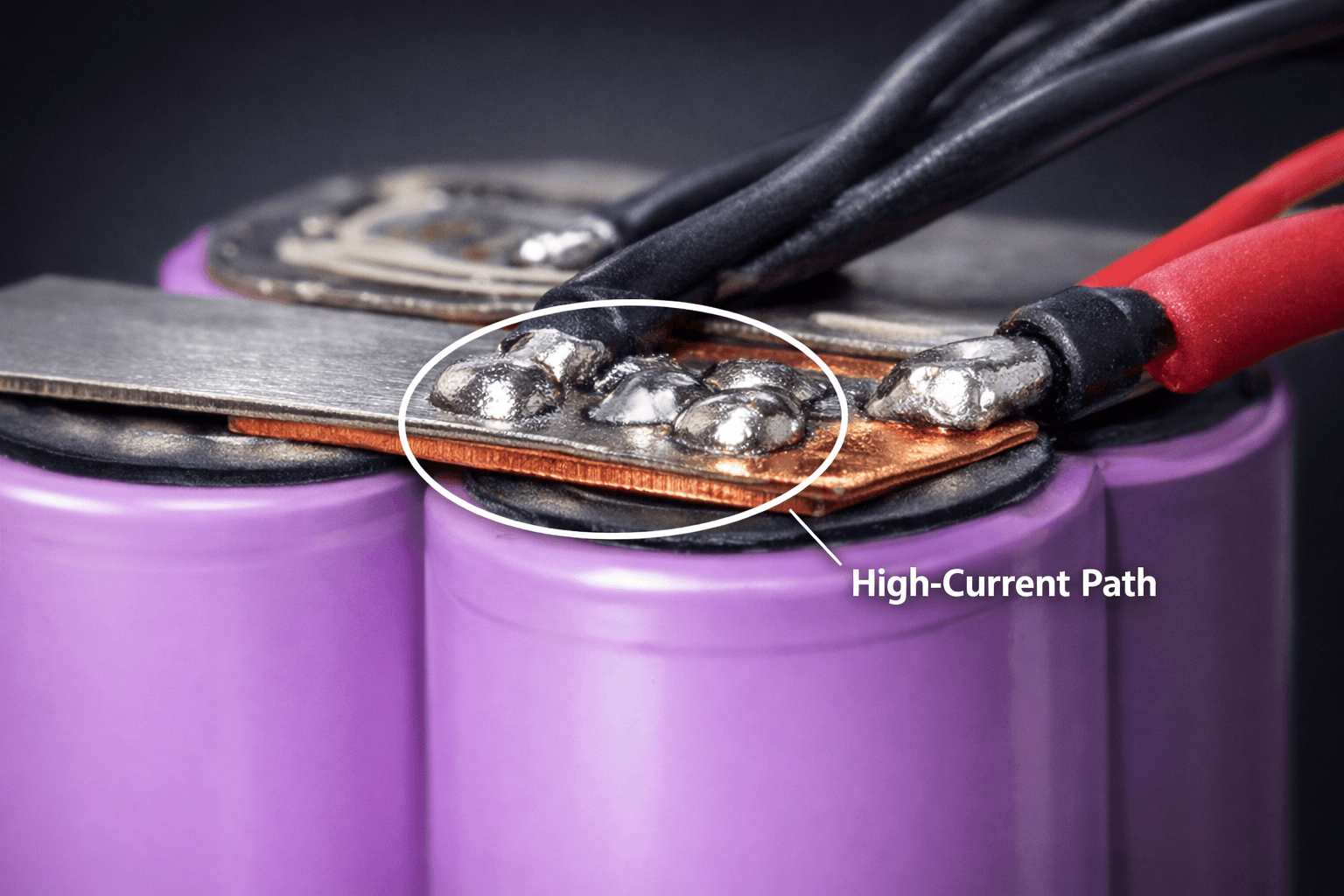

· High-Conductivity Laminated Welding
Utilizes a unique welding process combining 0.10mm nickel-plated steel strips with 0.20mm T2 copper strips. This significantly reduces internal resistance and heat generation, supporting sustained high-current discharge without voltage sag.
· Aviation-Grade Safe Construction
Built with 3mm shock-absorbing foam and double-layer thickened PVC heat shrink tubing. Equipped with 12AWG high-temperature silicone wires and reliable Amass XT60 connectors for vibration resistance, heat tolerance, and secure connections.
· Quality Control from a Drone Maker's Perspective
HazeFlight understands power system demands from firsthand aircraft design experience. Every batch undergoes real-world flight testing to ensure stable, safe, and durable performance.
📊 Technical Specifications
Item | Specification |
|---|---|
Brand | HazeFlight |
Configuration | 6S1P |
Cell Model | BAK INR2170-45D |
Rated Capacity | 4500mAh |
Nominal Voltage | 21.6V (3.6V × 6) |
Nominal Energy | 97.2Wh |
Continuous Discharge | 20C (Max) |
Cell IR | ≤3.0mΩ per cell |
Pack IR Variance | <0.2mΩ |
Wiring | 12AWG Silicone Wire (200°C Rated) |
Connector | Amass XT60 |
Dimensions | 75×73×44mm |
Weight Approx | ~480g |
🛩️ Compatible Models
· HazeFlight Series FPV Drones (Full Compatibility)
· HazeFlight Fixed-Wing Long-Range Aircraft
· Other RC Models & Drones supporting 6S power
· Ideal for Racing, Freestyle, and Long-Range FPV Flight
✅ The HazeFlight Commitment
We are more than just a battery supplier; we are drone designers and manufacturers. From cell selection and welding techniques to real-flight validation and support, we maintain full control over the entire process. Our goal is to provide you with a power solution that offers superior performance, enhanced safety, and perfect compatibility.
