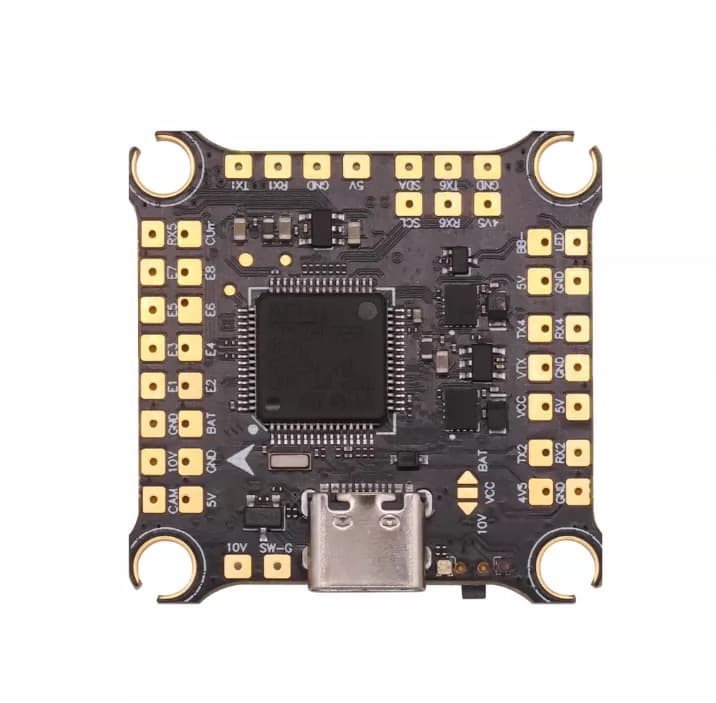

HAKRC F7230V2 Flight Controller Specification

Features:

1. High-end 6-layer PCB with 1oz thickened copper, providing strong anti-interference capability.

2. Dual gyroscope design to reduce errors associated with a single gyroscope.

3. Industrial-grade LDO for high-temperature resistance.

4. Plug-in connectors for easy installation, no soldering required.

5. Built-in 4-channel programmable LEDs with customizable lighting effects.

6. Reserved 10V power output for external LED strips; supports custom control via transmitter channels.

7. Video transmitter (VTX) power can be switched on/off via ground station channel settings, convenient for tuning.

8. Uses high-quality Japanese Murata capacitors with strong filtering performance.

Dimensions & Weight:

• Size: 36 × 36 mm (30.5 × 30.5 mm mounting holes)

• Package size: 64 × 64 × 35 mm

• Net weight: 8.5 g

• Package weight: 38.5 g

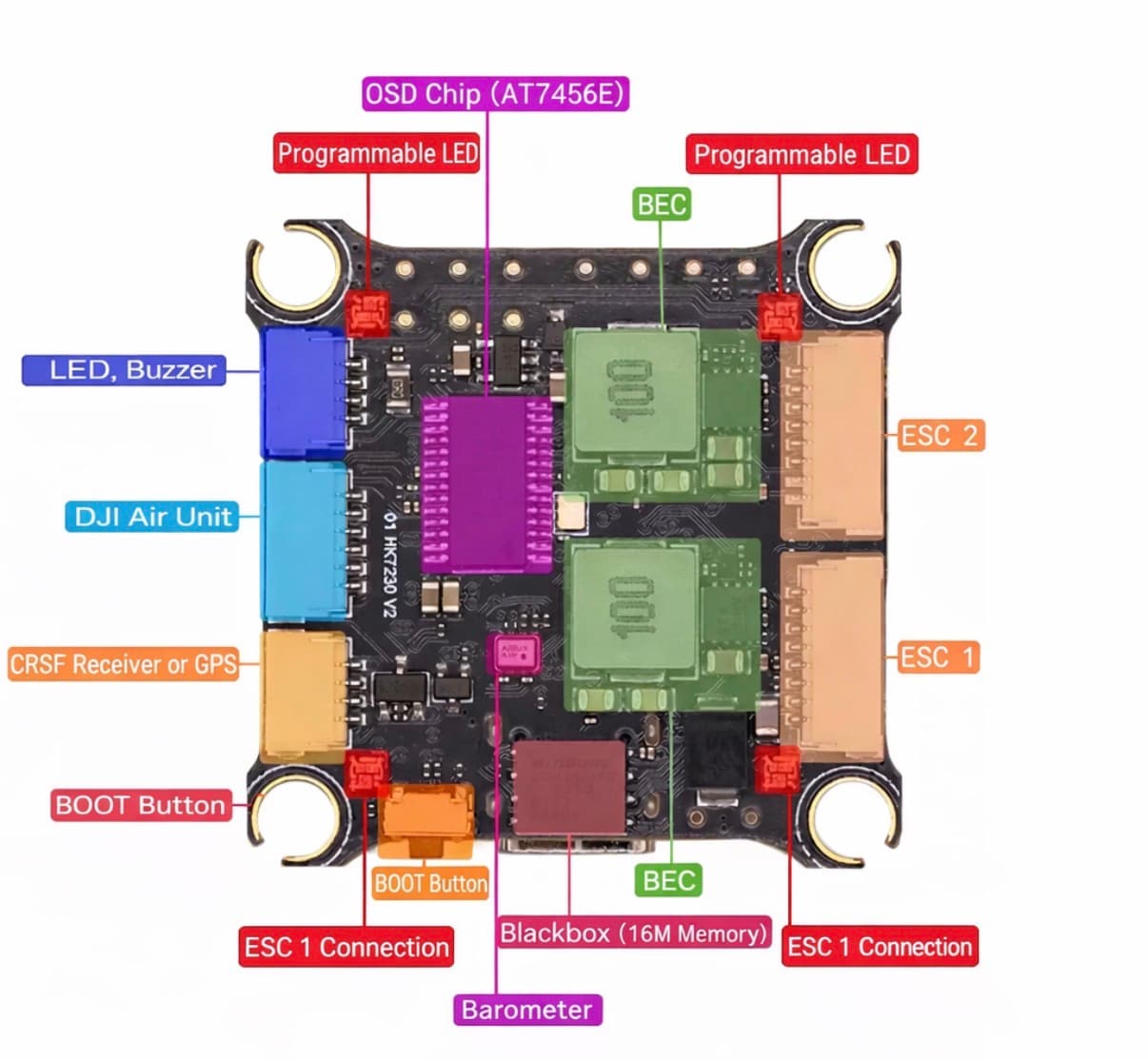

Flight Controller Specifications:

• CPU: STM32F722RET6

• IMU: ICM42688 dual gyroscope

• OSD: AT7456E

• Barometer: Integrated

• Blackbox: 16MB

• BEC: 5V / 3A

• BEC: 10V / 2.5A

• LED: Adjustable LEDs

• Sensor: Built-in current sensor

• Firmware: HAKRCF722V2

• Receiver compatibility: FrSky / Futaba / FlySky / TBS Crossfire / DSMX / DSM2
