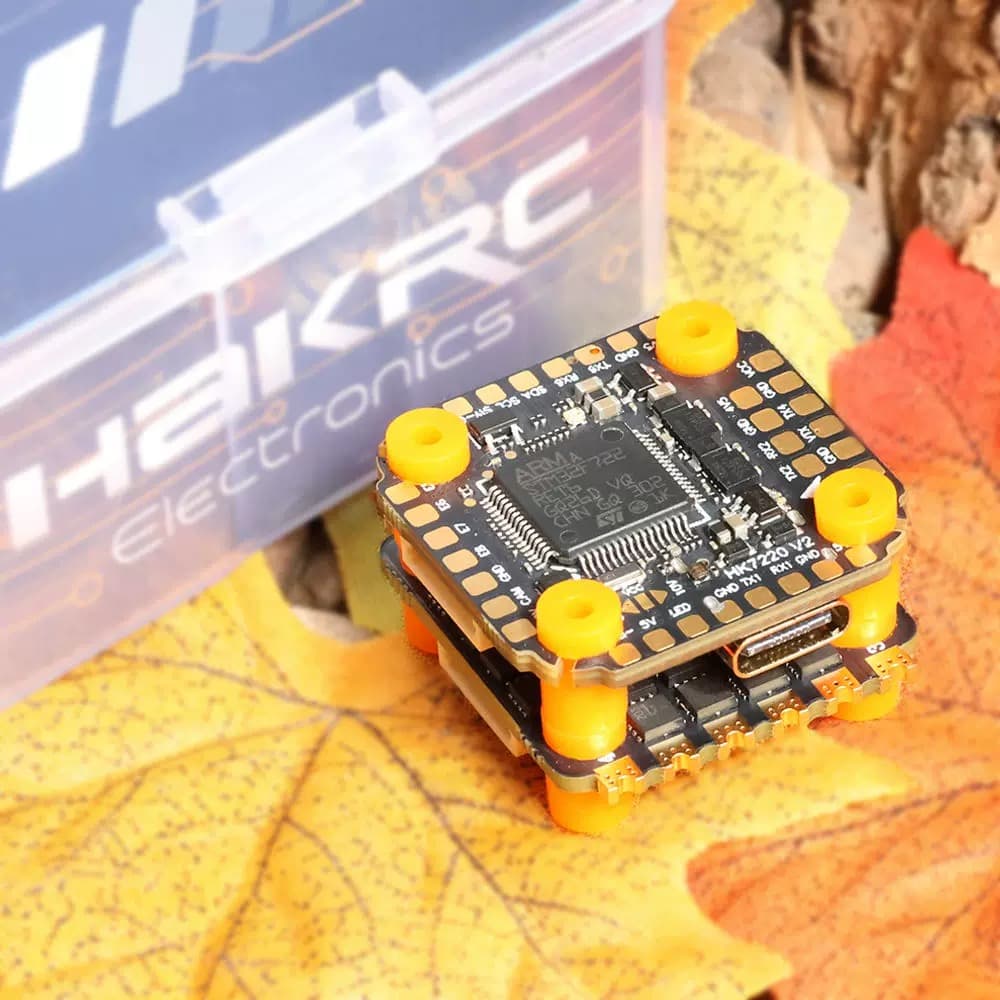

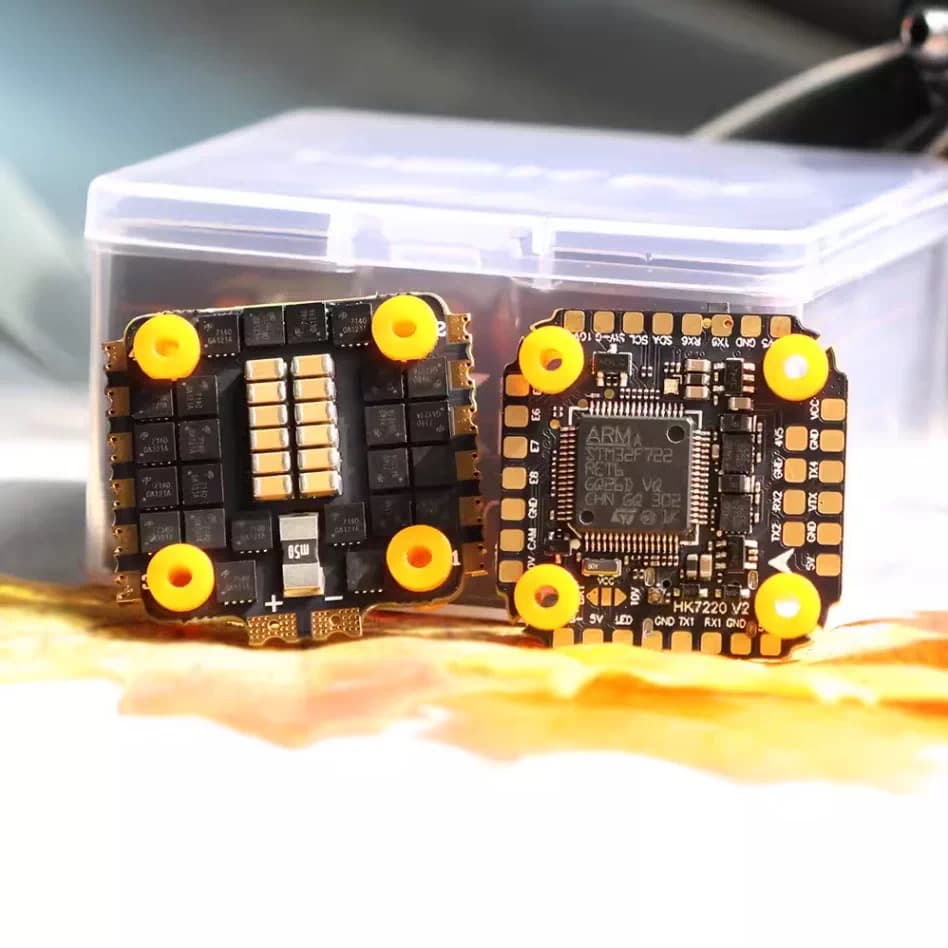

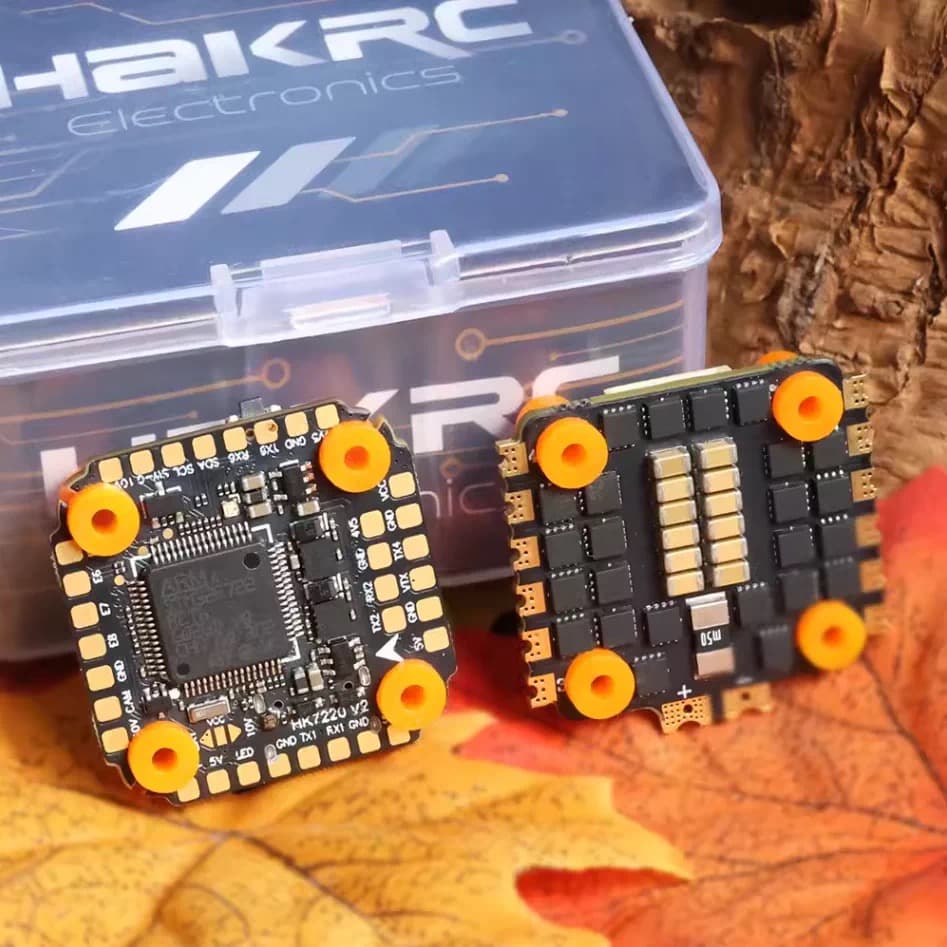

F7 Mini V2 + 65A Stack

Package Contents:

• F7 Mini Flight Controller ×1

• 65A 4-in-1 ESC ×1

• M2 Orange Vibration Dampers ×8

• 8-pin Cable ×1

• DJI 6-pin Cable ×1

• Capacitor (35V 270µF) ×1

• XT60 Power Connector ×1

• Red & Blue Power Wires ×1

• M2×25mm Screws ×4

• Black Nuts ×4

• DJI O3 Air Unit 3-in-1 Cable ×1

• User Manual ×1

⸻

Specifications:

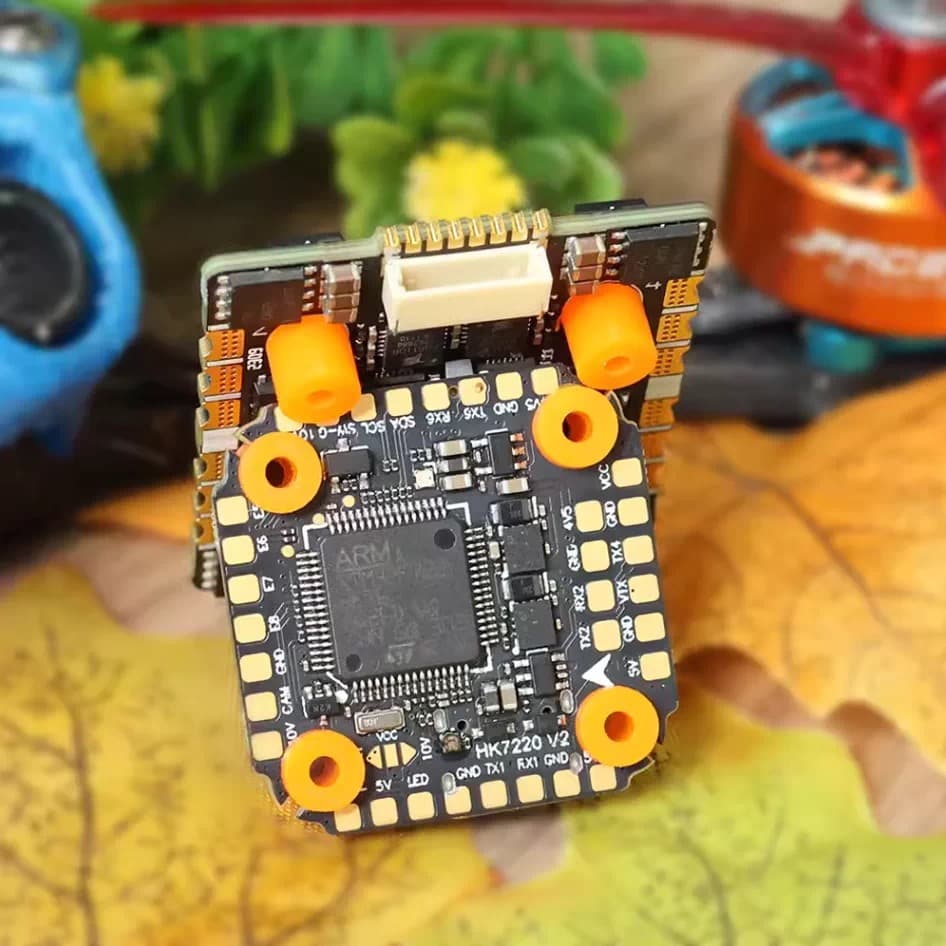

Flight Controller

• Size: 29 × 29 mm

• Weight: 6 g

• Mounting Hole: 20 × 20 mm

• MCU: STM32F722RET6

• Gyro: ICM42688 Dual Gyroscope

• BEC: 5V / 2.5A; 10V / 2A

• Input Voltage: 2–6S LiPo

• Storage: 16MB

• Firmware: HAKRC F722 V2

• UART Ports: 6

⸻

ESC (Electronic Speed Controller)

• Size: 34 × 42.5 mm

• Weight: 11 g

• Mounting Hole: 20 × 20 mm

• Continuous Current: 65A

• Peak Current: 70A

• Configuration Software: BLHeli Suite 32 Activator 32.9.0.3

• Input Voltage: 2–8S LiPo

• Current Sensor Scale: 160

• Supported Protocols:

PWM, Oneshot125, Oneshot42, Multishot,

DShot150, DShot300, DShot600

• Firmware: HAKRC_AT4G_Multi_32.9 Hex
